Sliding Windows

• The wind resistance is Guaranteed by the maximum reinforcement chamber design.
• The frame is made up of two or more sashes that slide horizontally to the left or right on tracks.
• EPDM gasket makes assembly easy and tight seal.
• System can be designed with mesh or without mesh.
• The sliders work on a ‘ride over’ mechanism.

Description

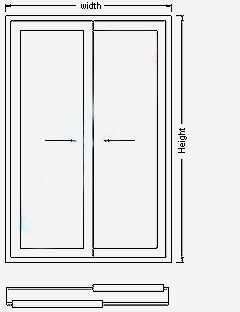

Two movable sliding tracks that slide in opposite directions.

Provides 50 % opening at any given time.

Retro fit fly mesh can be fitted on an additional track. The mesh slides towards the sash that is opened.

Mesh has to be added at the time of specification. Track cannot be welded once the windows is fabricated.

Recommendation

Windows that require good sound insulation and space economy.

All windows that require mesh.

Bedrooms, living rooms.

Note: Exact sizes will vary according to the wind pressure in your city and the floor where doors have to be installed.

	Range	Min.		Max.
		Width	Height	Width	Height
	Series 1500	900	450	1500	1500
	Series 3000	900	450	2400	2400

	Range	Min.		Max.
		Width	Height	Width	Height
	Series 1500	450	450	750	1500
	Series 3000	450	450	1200	2400
